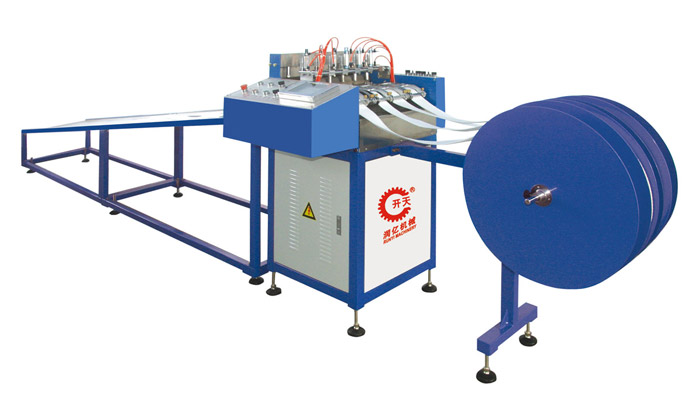

Machine is efficient products. Scope In Container harness, shroud, Zhakou belt, seat belt, luggage belt, the machine to do the electrical power source, electric heating knife. Set automatic fixed length, auto RBI, automatically cut off in one, using high-precision servo motor tape cutting, the internal control system adopts PLC programmable controllers, operator interfaces for high-tech products man-machine interface. The machine is not only beautiful appearance, easy operation and maintenance, and fast speed, low power consumption, high degree of automation, cost savings effect is particularly objective.
Technical Parameters:
|
Webbing Width |
10-100mm |
|
Cutting the number of |
1-6pcs |
|
Cutting length |
0.03-200m |
|
Cutting / RBI accuracy |
±1% |
|
Cutting speed |
30-60pcs/min |
|
temperature control |
0-400℃ |
|
Total power |
3KW |
|
Overall dimensions |
5600×1100×1500 |
|
Total Weight |
350kg |
