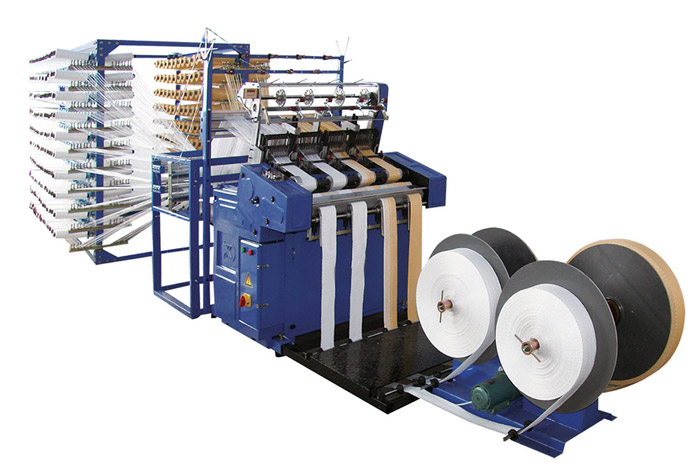

HIGH-SPEED NEEDLE LOOM
HIGH-SPEED NEEDLE LOOM
Technical Parameters:
|
Ribbon number |
4 |
2 |
|
Webbing Width |
20-70 30-70 |
maximum110 |
|
Web speed |
100-150 80-125 |
80-125 |
|
Weight range |
≤35 ≤60 |
≤90 |
|
The volume of the first |
600 |
520 |
|
Diameter line name and specifications |
Polypropylene wire3300±100 |
Polypropylene wire3300±100 |
|
Weft name and specifications |
Polypropylene filament800-1000 |
Polypropylene filament800-1000 |
|
Lock sideline Name Specification |
Polypropylene filament600-800 |
Polypropylene filament600-800 |
|
Main motor power |
1.5KW |
1.1 |
|
Winder torque motors |
1.2KW |
0.8 |
|
Overall dimensions |
6880×1680×1980 |
6280×1450×1900 |
|
Total Weight |
980kg |
780kg |
