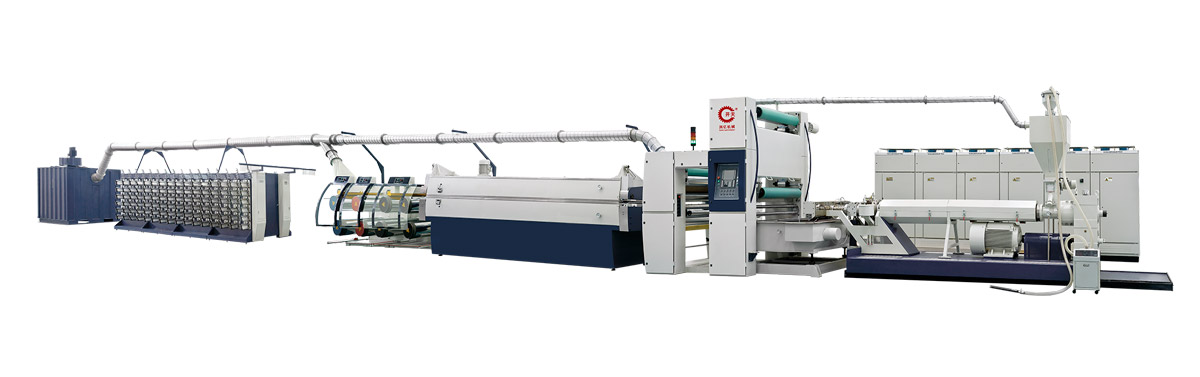

SJPL-Z Plastic flat wire drawing machine introducing and absorbing advanced technology from Germany, PLC program control, frequency control and other advanced technologies. The main electrical components are used foreign high-quality products; extruder screw barrel adopts special processing 38CrMoAIA quality steel; cold water tank made of high quality stainless steel plate manufacture, seven roll drawing machine gear box, monofilament drawing and stereotypes adopt advanced hot air oven, so that the unit's main technical indicators reached the international advanced level, its fast, high yield, low energy consumption, good forming quality of the monofilament. The entire unit compact structure, attractive appearance, smooth running, flexible and reliable control, sophisticated manufacturing technology, easy to operate, safe and reliable.
Technical Parameters:
|
Item |
SJPL-Z75×33-800 |
SJPL-Z90×33-1100 |
SJPL-Z100×33-1300 |
SJPL-G120×33-1500 |
|
Max.extrusion volume |
140kg/h |
250 kg/h |
290kg/h |
500 kg/h |
|
Screw Dia |
75mm |
90mm |
100mm |
120mm |
|
Ratio of L/D |
33:1 |
33:1 |
33:1 |
33:1 |
|
Rotate speed of screw |
20-100r/min |
|||
|
Length of mold lip |
800mm |
1100mm |
1300mm |
1500mm |
|
Line spee |
220m/min |
|||
|
Flat yarn fibre scope |
60-200tex |
|||
|
Drawing ratio |
4-10 |
|||
|
Winder |
128 Spindles |
184 Spindles |
224 Spindles |
256 Spindles |
Specification and dimensions are subject to change without prior notice.
